Zhongshan City, Guangdong Province, China | 2026 – Evo Era CD · USB · BluetoothAll in One DAC Amplifier.
Bring Every Era of Music to Life!
Dual DAC Architecture
Two DAC Architectures – Your Choice of Sound
Δ-Σ

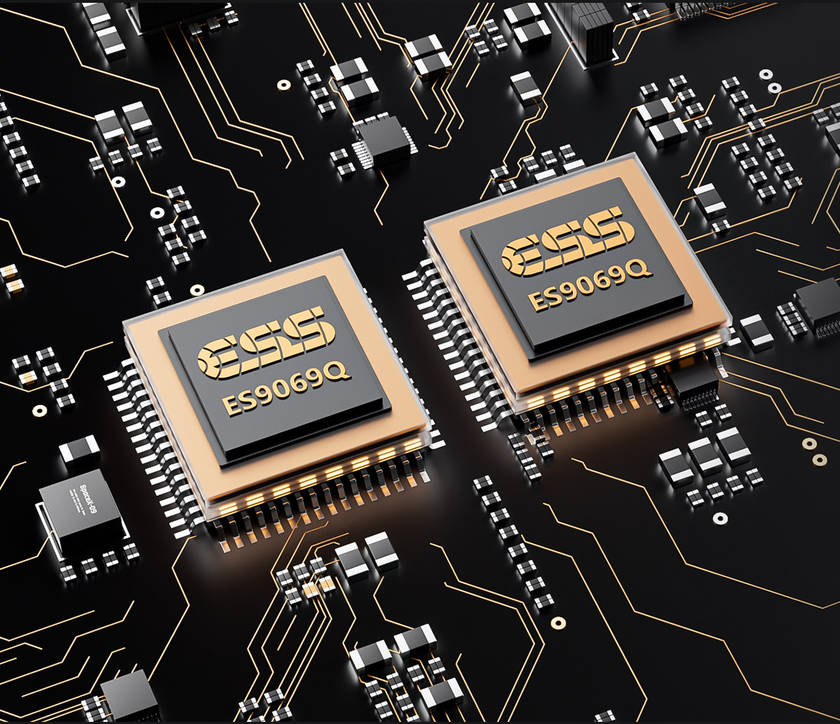

Dual ES9069Q DACs
Two ES9069Q DACs operate in mono mode within a fully differential architecture, delivering wide dynamic range, fine detail and precise digital-to-analog conversion.

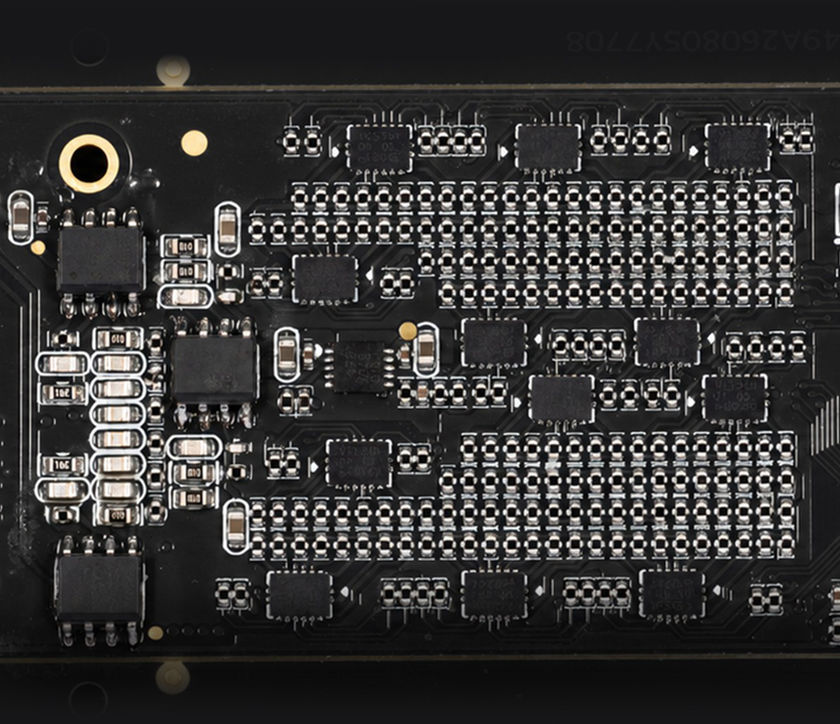

R-2R
Discrete String R-2R DAC
More than 170 precision resistors across four specifications form a two-channel String R-2R decoding network. Independent power supplies serve the left and right channels, while selectable oversampling (OS) and non-oversampling (NOS) modes offer further listening flexibility.

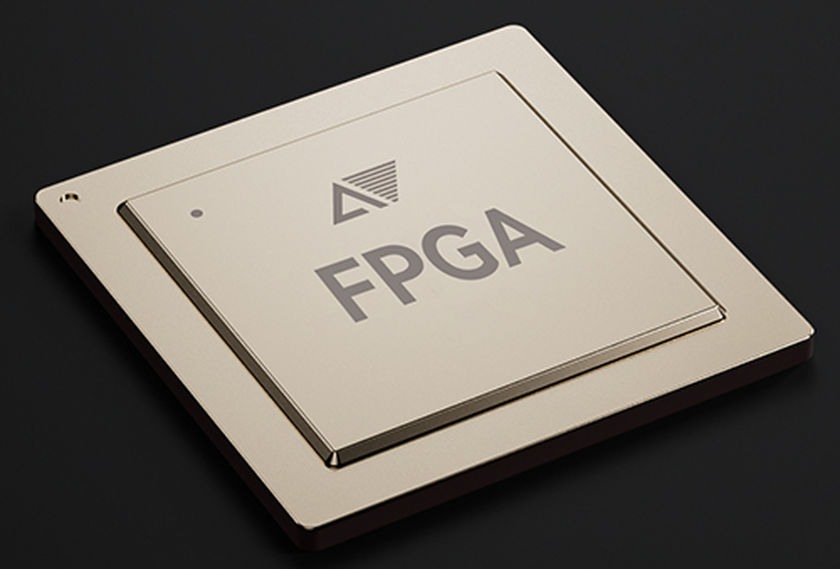

FPGA Precision and Control
A 100K-LUT FPGA reshapes I²S audio data and calibrates R-2R decoding, coordinating digital processing with the discrete resistor network and analog output stage.
Triple Analog Architecture
Three Sound Signatures – Your Choice
Evo Era brings the analog architecture of the Evo One flagship player to an All-in-one DAC and Headphone Amplifier. Choose between two hybrid tube timbres—Velvet and Lumina—and a Fully Transistor signal path, each offering a distinct sonic character.
Hybrid Tube Architecture Tube Preamp + Solid-state Output Stage

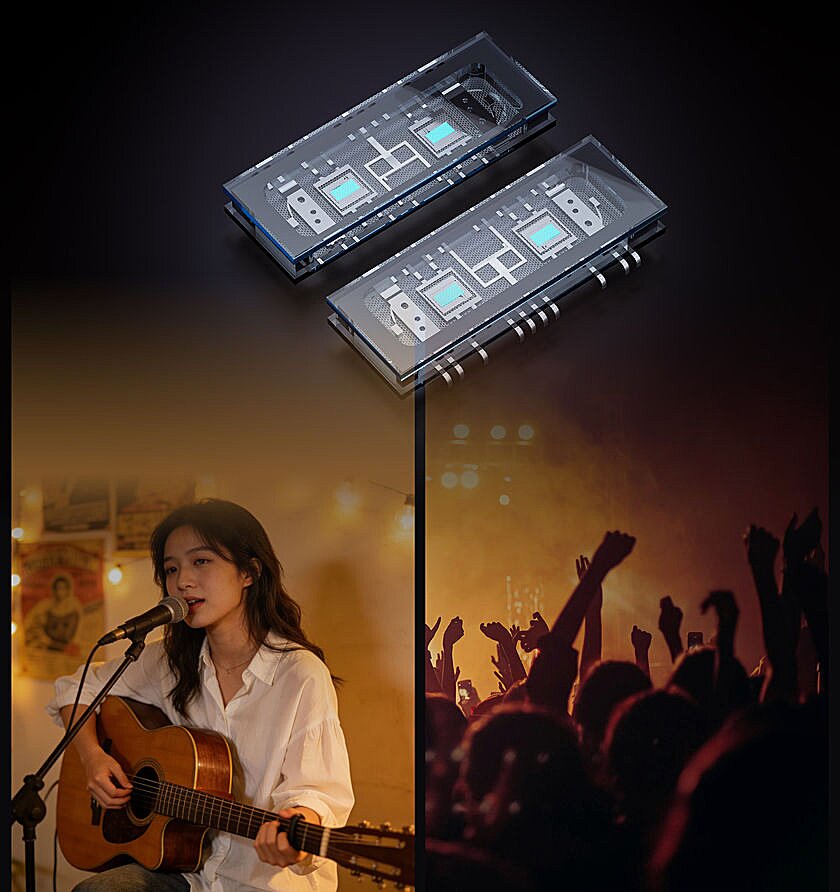

Built around a pair of KORG Nutube 6P1 tubes, the circuit combines a buffer stage, a tube voltage-gain stage, and a buffer driver stage to deliver refined, expressive performance. An independent JFET constant-current source circuit in the source load enhances drive capability and control, bringing together tube warmth and solid-state precision. With two selectable sound signatures — Velvet and Lumina — listeners can tailor the presentation to suit their preference.
Velvet
Warm, harmonically rich sound with pronounced even-order harmonics, ideal for vocals and relaxed, expressive listening.
Lumina
A clear, transparent presentation with strong definition and evenly balanced harmonics,
well suited to a wide range of musical styles.
Fully Transistor Architecture
Ideal for large-scale works such as classical symphonies and cinematic soundtracks.
Headphone Amplifier
From Sensitive IEMs to Demanding Headphones
A four-channel, fully balanced amplifier combines operational amplifiers with discrete power transistors to deliver low noise, strong transient response and sustained driving power. Adjust the Gain and Power Amplification Mode to suit your headphones’ sensitivity and impedance, as well as your listening preferences.
4.4 mm · 32 Ω DC Input Mode
External Power Full Potential
Connect a compatible USB Power Delivery (PD) power supply and select DC INPUT in the menu. The external supply powers Evo Era directly, unlocking its full headphone output power.
124 dB Dynamic Range
125 dB S/N Ratio
0.0025 % THD+N
1Ω Output Impedance
Measured through the 4.4 mm balanced headphone output using Delta-Sigma decoding.
Results vary with measurement conditions, decoding mode and analog operating mode.

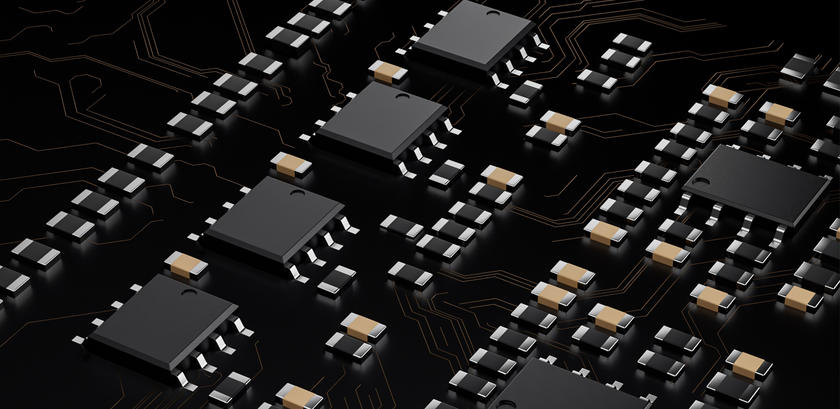

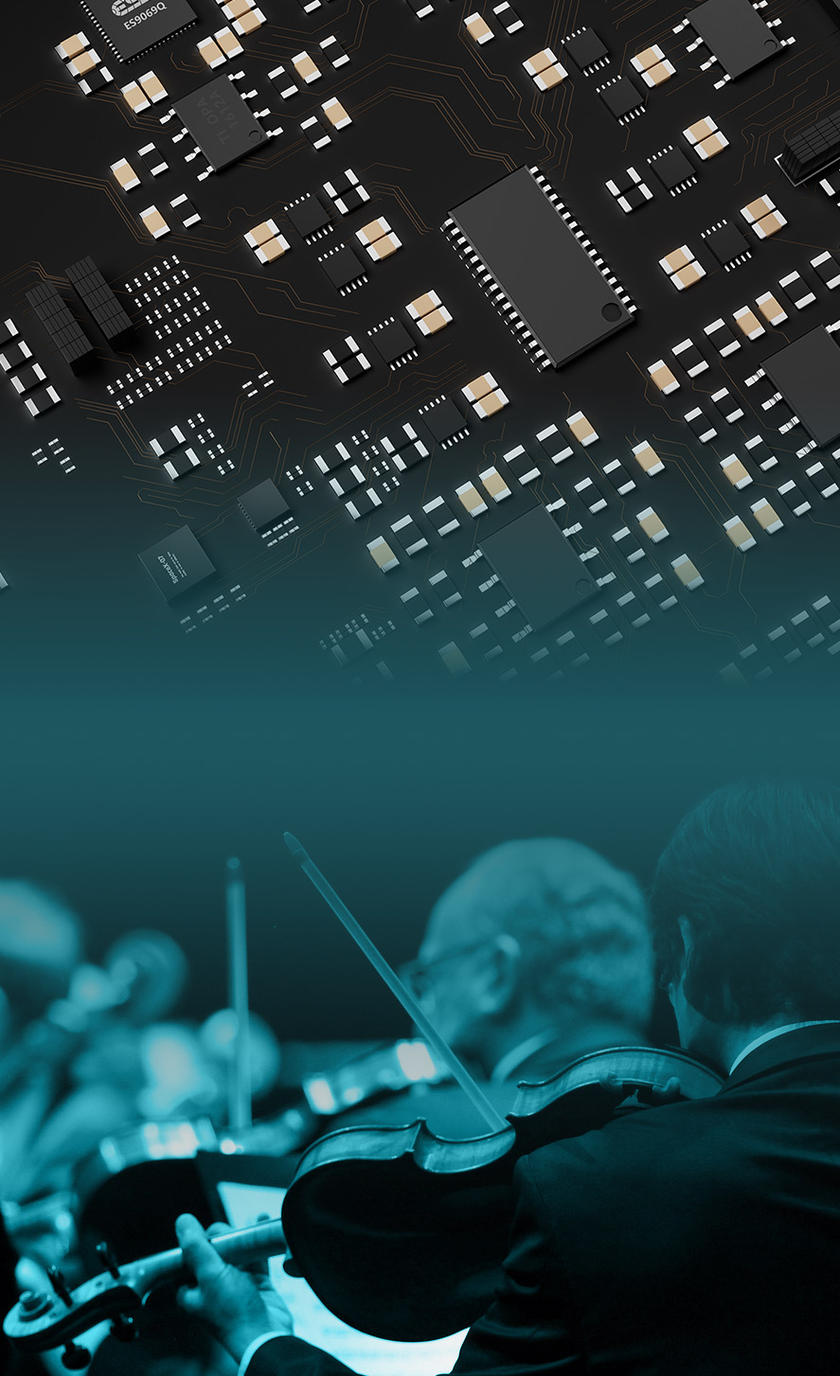

Great Sound – Engineered at Every Stage
Every stage of the audio chain contributes to what you hear. From digital audio reception and dual DAC decoding to analog signal handling, headphone amplification and power supply design, every element of Evo Era works together to deliver clean, controlled and powerful sound.

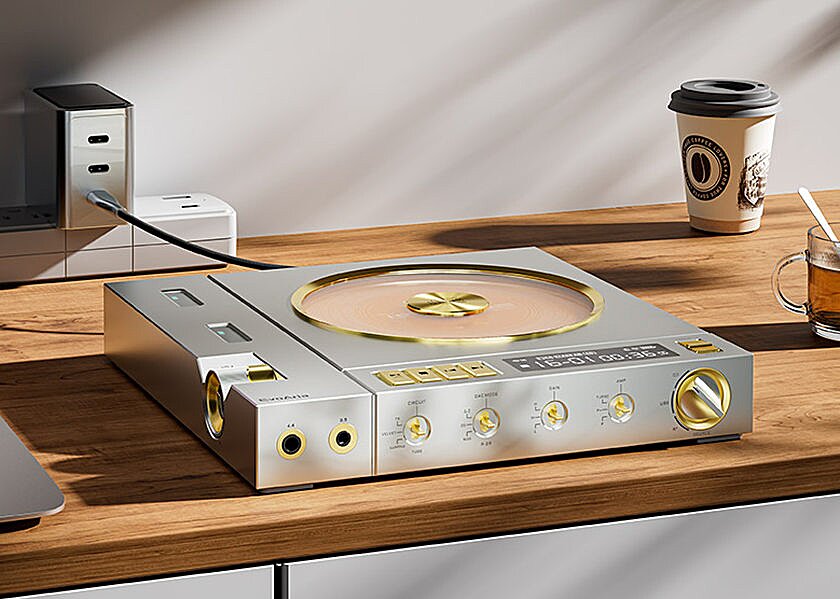

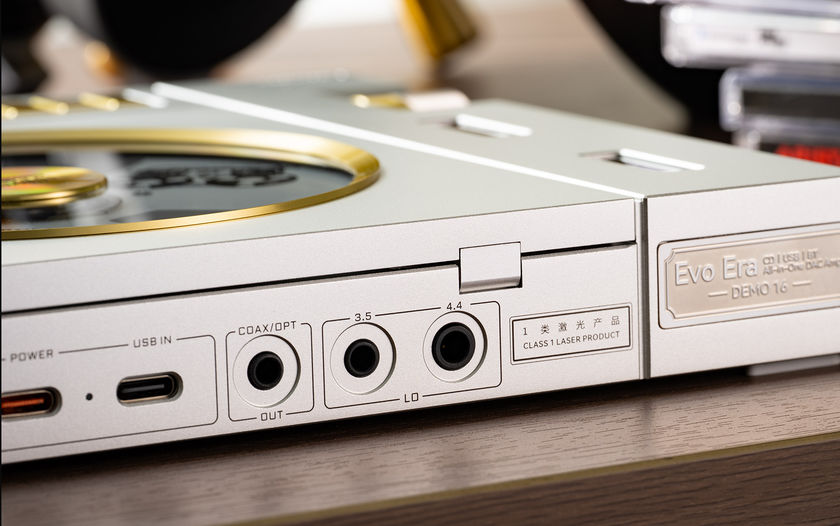

Headphone · Line · digital Outputs

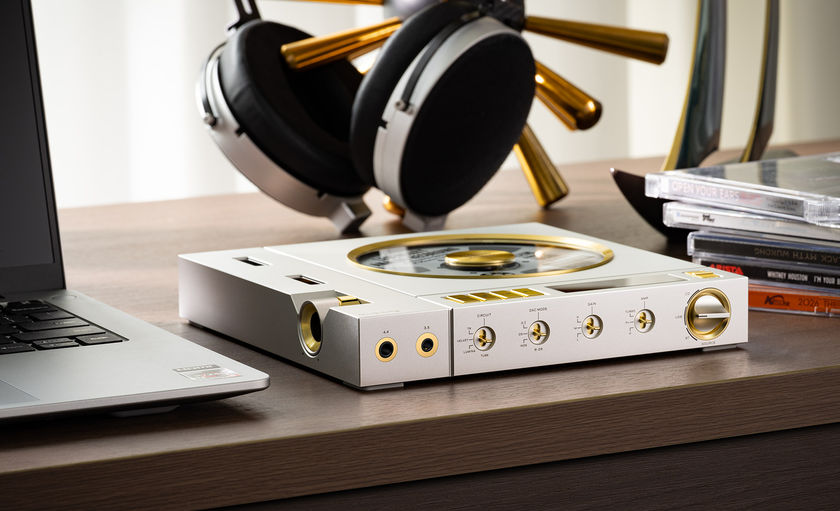

At the Heart of Your Listening System
Combining a CD player, DAC and Headphone Amplifier, Evo Era fits naturally into a wide range of listening setups. Listen directly through headphones, or connect to powered speakers, a headphone amplifier,a preamplifier or an external DAC. The 3.5 mm and 4.4 mm analog outputs feature intelligent connection detection for convenient everyday use.
Three ways to listen
01 The Ritual of Physical Media

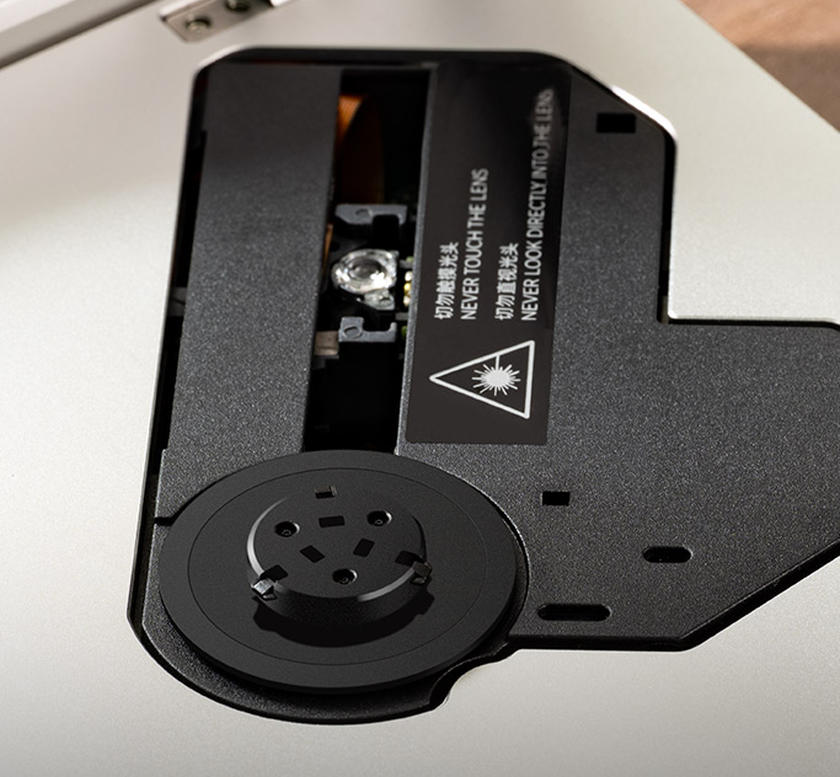

02 Custom CD Mechanism and Servo System
03 Tactile Controls. Direct Operation.
01 / CD Playback

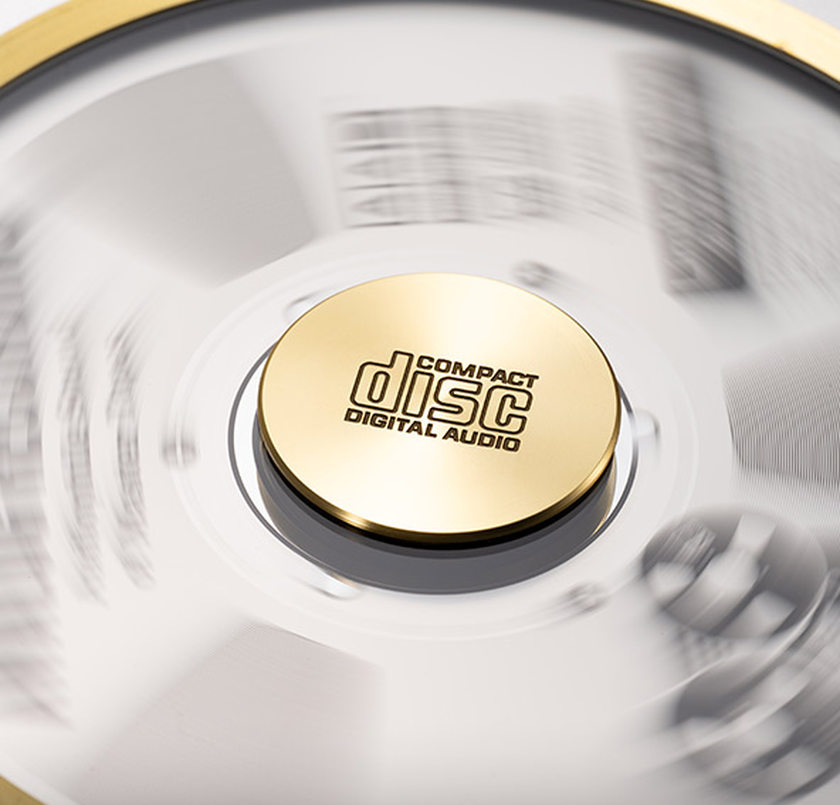

Every CD deserves to Be Heard at Its Best
Choose a disc. Press play. Rediscover an album. A custom CD mechanism and dedicated servo system handle disc reading and playback, while physical controls and a clear display make track selection, playback modes and time information easy to access. Bring your CD collection back to the heart of your listening system.
02 / USB Audio
A High-Resolution USB DAC for your Computer or Phone
Connect a compatible computer or smartphone via USB to enjoy your digital music library and favorite streaming services through Evo Era. Explore the same selectable DAC architectures, analog sound signatures and powerful headphone amplification available during CD playback.
03 / Bluetooth Audio
Stream Wirelessly – Listen Your Way
Stream music to Evo Era from a compatible smartphone, tablet, computer or other Bluetooth audio source. Enjoy high-quality sound through headphones or an audio system connected to Evo Era.
CD Ripping
Keep the Disc – Take the Music Further
Connect a compatible USB storage device and select CD RIP to save the music from your CDs as lossless WAV files.
*Ripping operates at 1× speed. Audio output is unavailable during ripping.

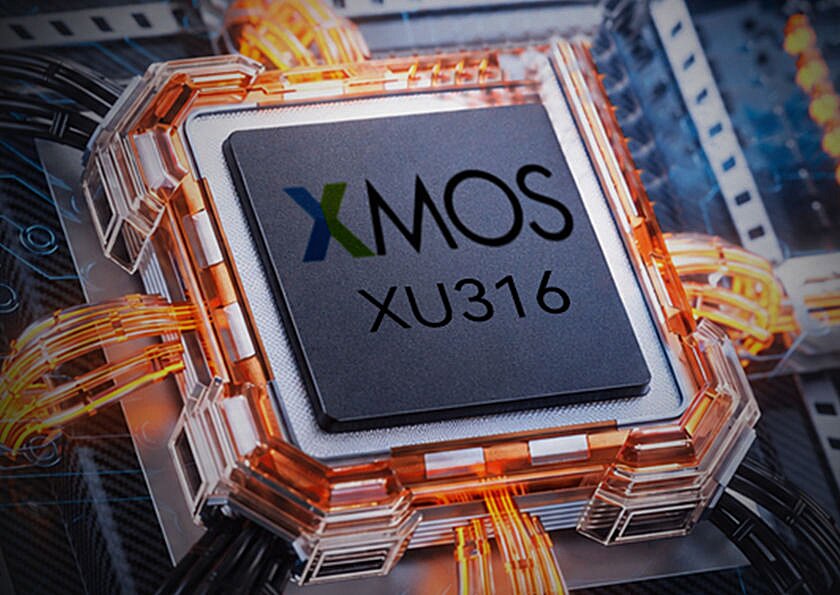

16-Core USB Audio Processing
XMOS – XU316
The XMOS XU316 USB audio processor supports USB Audio Class 1.0 and 2.0, with playback at up to PCM 768 kHz and DSD512.

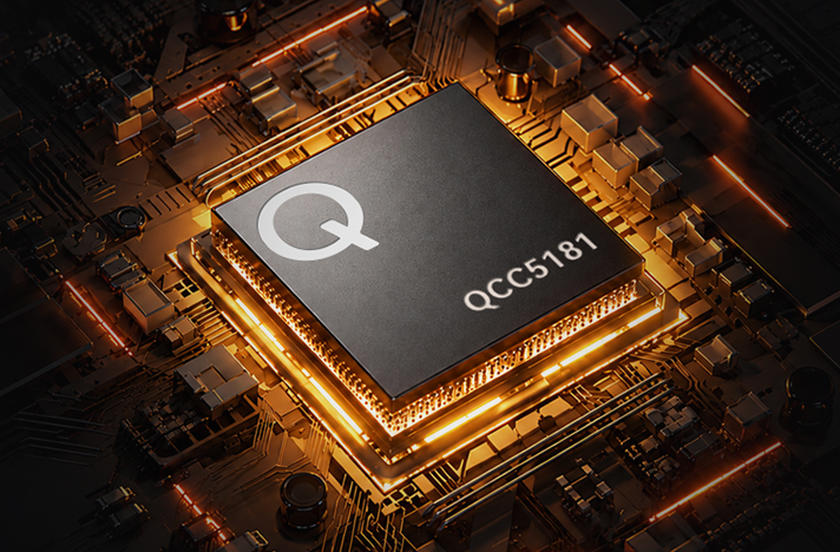

Bluetooth 5.4 with advanced Codec Support
Qualcomm QCC5181
Powered by Qualcomm QCC5181, Evo Era supports Snapdragon Sound.
Wireless playback up to 24-bit/96 kHz with compatible source devices and codecs.
Codec availability and playback resolution depend on the source device and the codec in use.

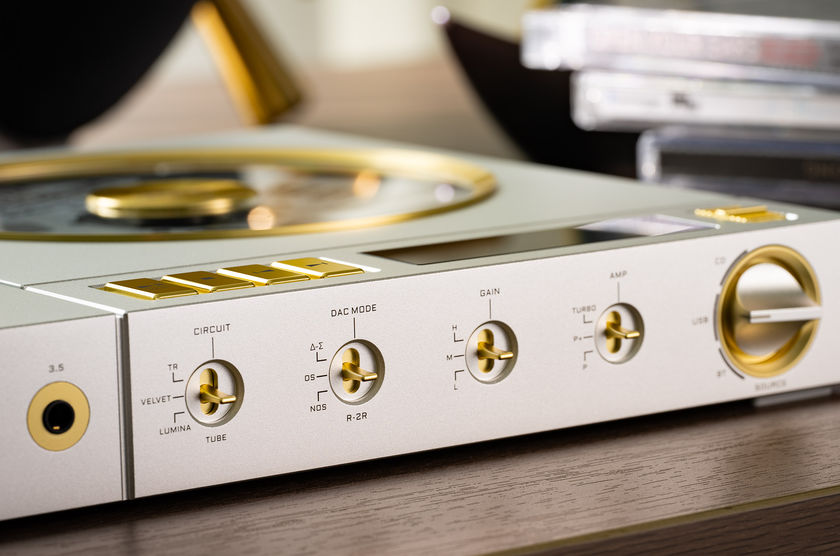

Direct Hardware Control
Your Sound in your Hands

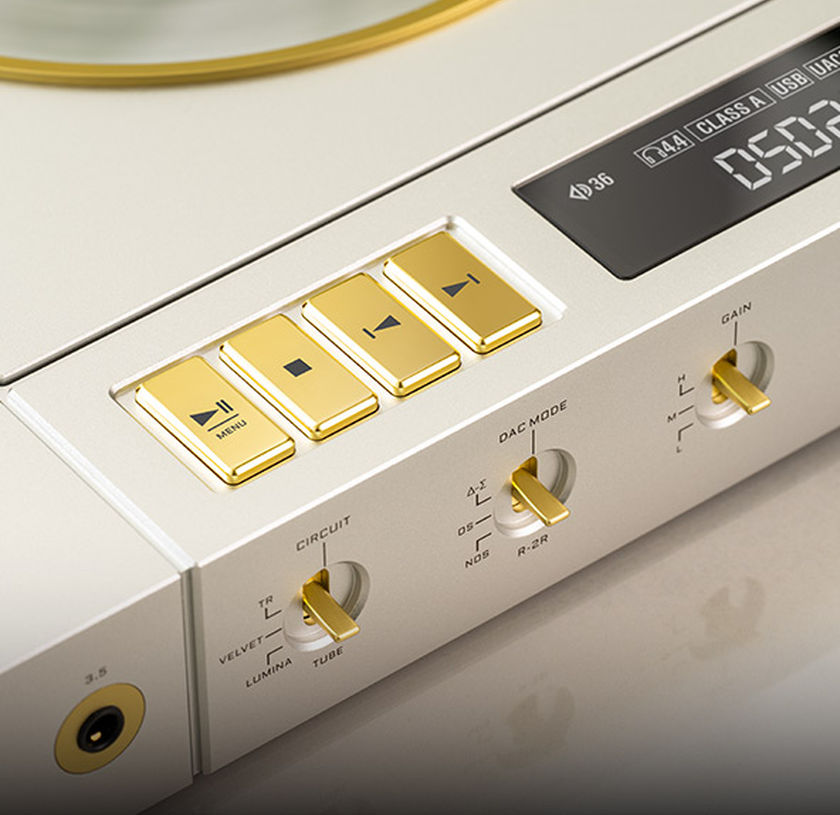

Dedicated switches and knobs put DAC Mode, Analog Timbre Circuit, Gain and Amplifier Power Mode directly at your fingertips. Explore different combinations to find the sound that suits your headphones, your music and your preferences.

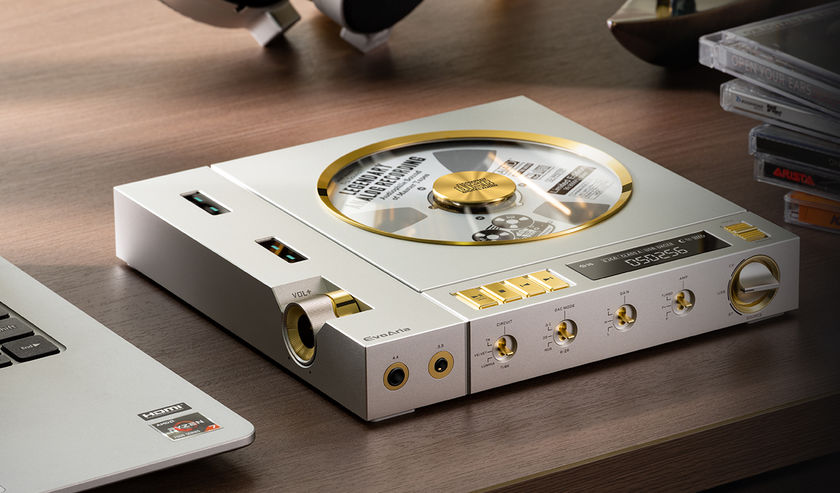

Every Detail – Designed for Listening
From opening the lid and loading a disc to selecting a track and shaping the sound, Evo Era brings the hands-on pleasure of physical media to a complete, intuitive listening system.

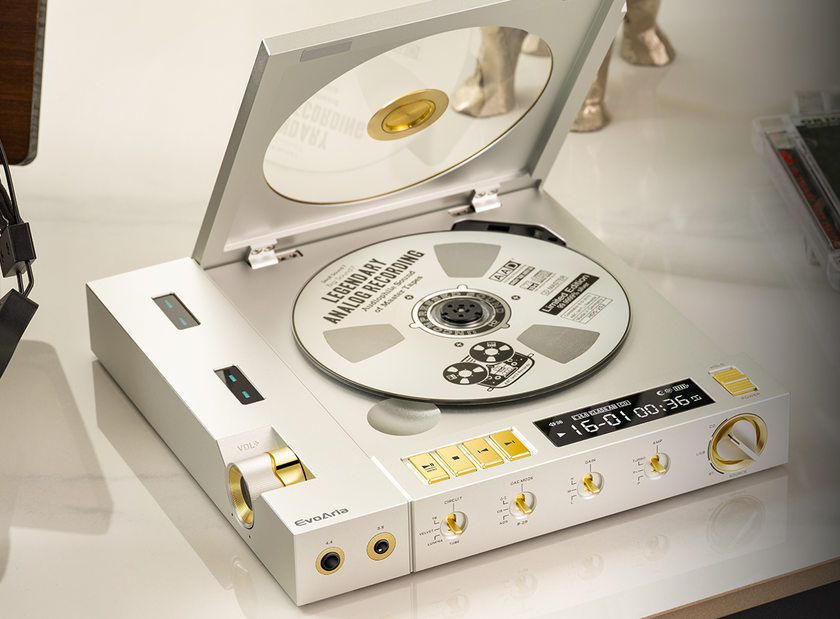

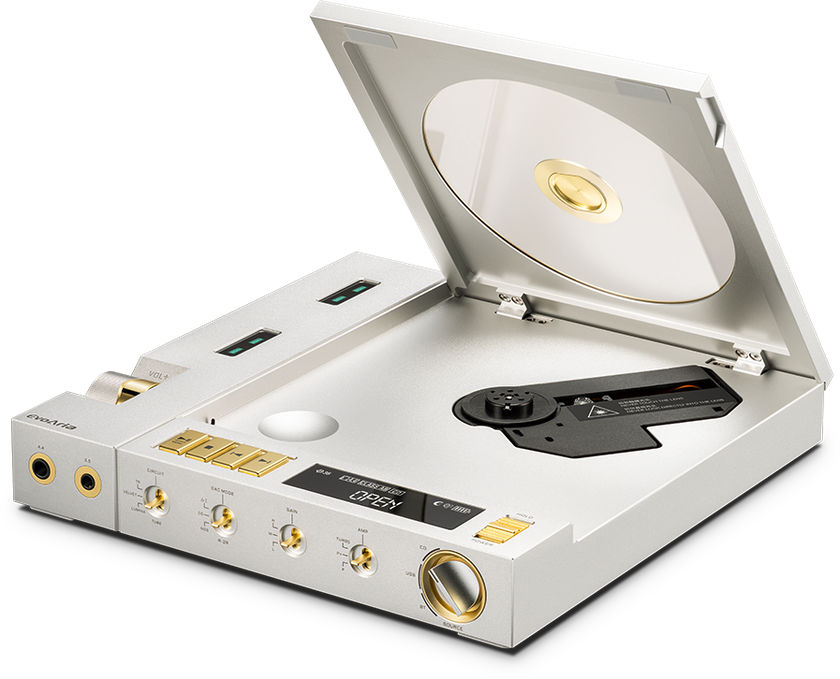

Top-Loading CD System
Open the Lid – Put Your Music in the Spotlight
The top-loading CD compartment features a magnetic closure for easy disc loading and removal. Open, load, close and play—each step celebrates the familiar ritual of listening to physical media.

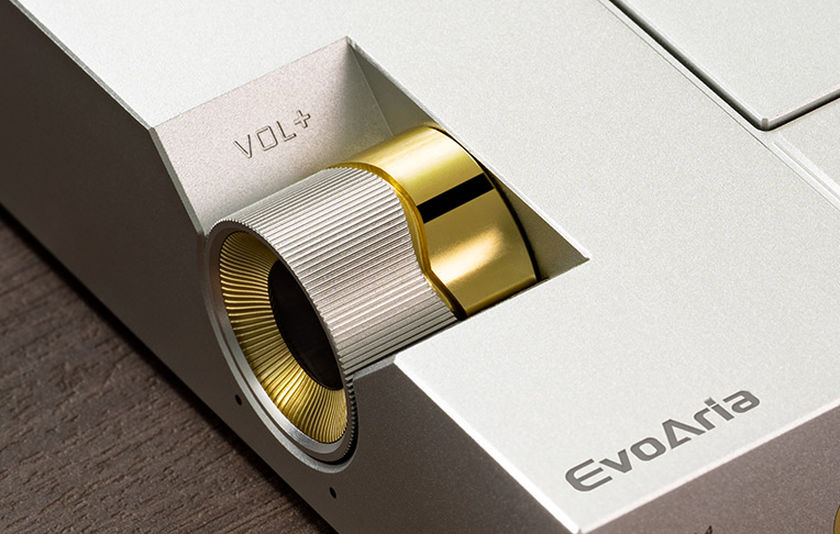

01 / Volume Control
Knurled Metal Volume Knob
Fine knurling provides a secure grip and a reassuring tactile feel. An ALPS potentiometer works with the NJW1195A volume-control IC to adjust the listening level.

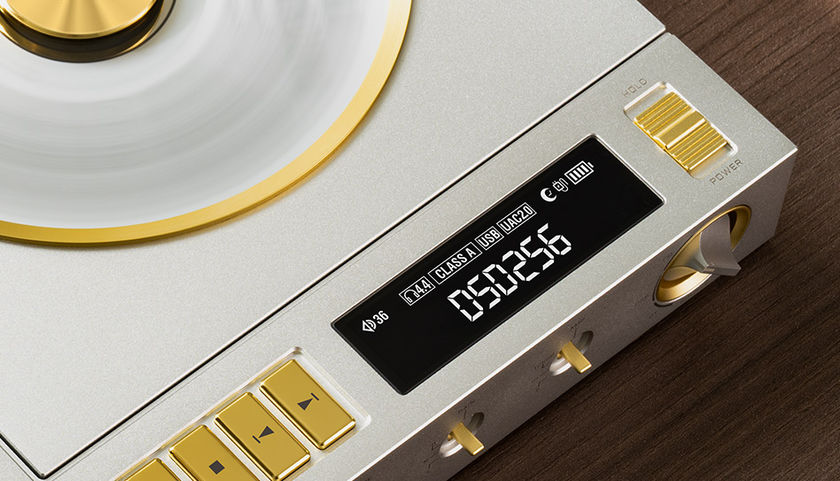

02 / Display
Essential Information at a Glance
The 2.2-inch TFT display clearly presents the track number, playback time, playback status and device information, keeping essential details easy to read while you listen.
Everyday Playback One Button Away
Dedicated physical buttons provide direct access to play, pause, stop and track selection—without navigating menus. Clearly separated controls make everyday operation simple and intuitive.

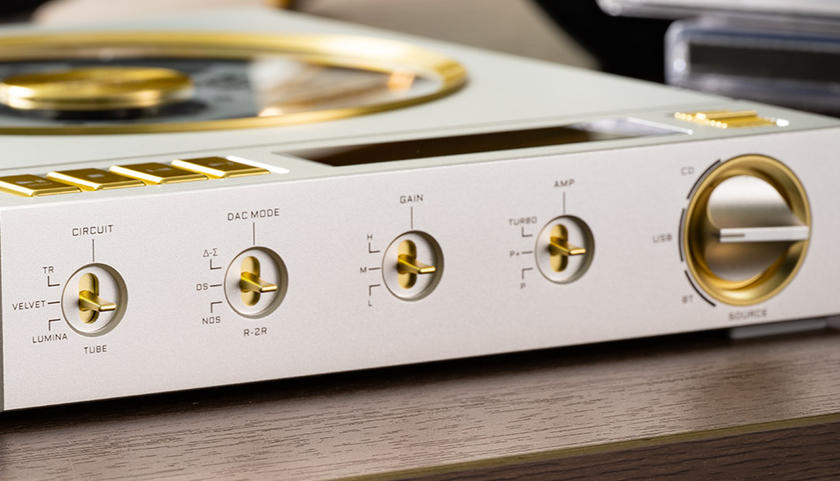

04 / Sound and Source Selection
Dedicated Switches and Knobs
Clearly arranged controls provide direct access to DAC Mode, Circuit, AMP and Input Source. Each control has a distinct function, keeping your selected settings visible at a glance.
Materials and Craftmanship
Precision you can see and feel
CNC-machined from 6063 aluminum alloy, Evo Era’s chassis combines structural strength with a refined tactile finish. A 200-grit glass-bead blasting process creates a fine matte texture, while the slim 29 mm profile completes its elegant form.
Transportable HI-FI
Desktop Listening – Beyond the Desk
With a built-in 10,000 mAh battery, Evo Era brings hi-fi listening beyond your desk—from room to room and wherever you go.
During CD playback, battery life reaches up to 14 hours through the 3.5 mm headphone output in TR mode, or approximately 9 hours through the 4.4 mm balanced headphone output in a hybrid tube mode. Actual battery life varies with headphone load, volume and operating mode.
Leather carry Case included
Take Your Music with You
A dedicated leather carry case is included as standard. Designed to fit Evo Era, it helps protect the chassis from everyday scratches and minor knocks, while the shoulder strap makes it easy to carry. The display, playback buttons and volume knob remain accessible with the case fitted, so you can check playback information and operate key controls without removing it.
Classic Media. Modern Possibilities
Evo Era
CD · USB · BT · All-in-One DAC and Headphone Amplifier
