Worcester, MA, USA | 2024 – The heart and soul of your system.


SKYbyGramophone logo 300x60 white background

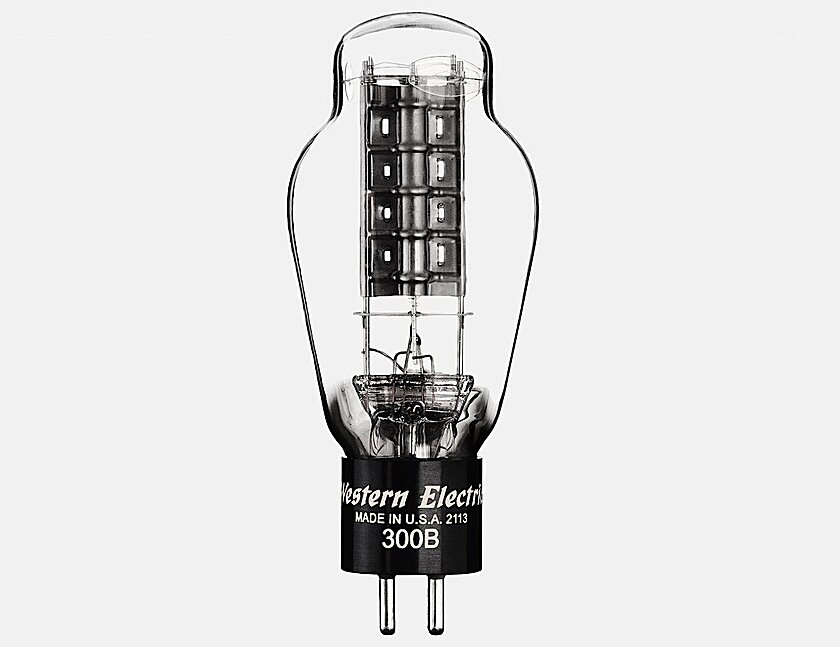

At the heart of the Brama Preamplifier lies Vinnie Rossi’s finest 300B linestage, featuring a matched pair of premium Western Electric WE300B triodes. Operating in pure Class A, these legendary triodes deliver an immersive listening experience with unmatched realism and tonality.

Vinnie Rossi Brama Preamplifier

The Brama Preamplifier’s fully balanced input and output stages ensure exceptional noise rejection and signal transfer between your source components and power amplifiers. A notable design feature is the direct mounting of the entire preamplifier’s dual-mono circuitry, including the 300B triodes, to the rear panel jacks. This unique approach minimizes the input-to-output audio signal path to only a few centimeters, effectively reducing signal degradation and preserving the purity of the audio signal.

Pure analog emotion.

Vinnie Rossi Brama Preamplifier

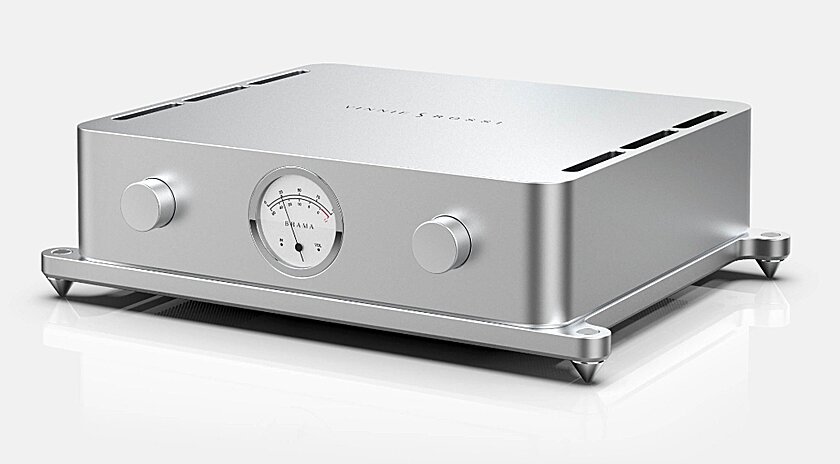

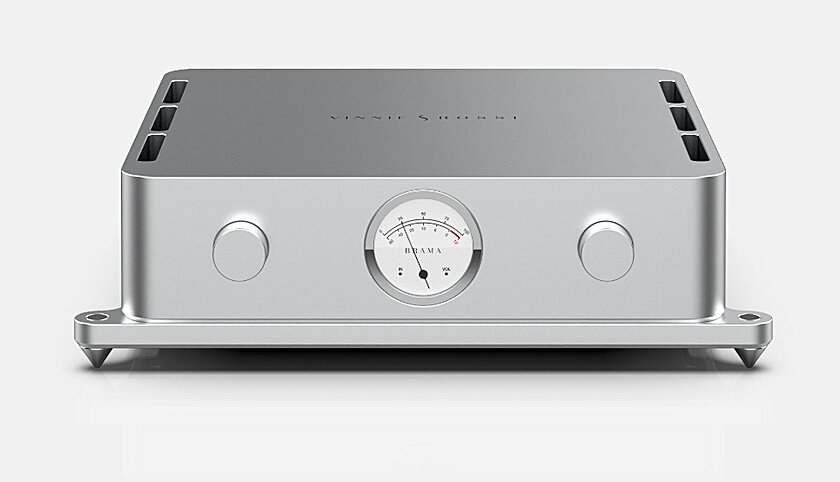

The front panel of the Brama Preamplifier presents a clean layout, luxurious feel, and timeless design, purposefully omitting digital displays and visual clutter.

Its bespoke analog VU gauge features a precision air core movement, responsive driver circuitry, and a machined aluminum hand. Sapphire glass and a highly-polished stainless bezel seamlessly integrate the gauge into the front panel.

Solid aluminum knobs are attached to Swiss-made, precision-stepped rotary switches, providing manual control with an incredibly satisfying feel.

Effortless command of your listening experience.

Vinnie Rossi Brama Preamplifier

The Brama Remote sets a new standard in the audio industry. Its intuitive menu structure, high-resolution display, and tactile push buttons provide seamless control over your listening experience.

Effortlessly adjust volume, gain, balance, and independently save settings for the five inputs. Bluetooth communication with your Brama Preamplifier eliminates line-of-sight or range issues, while USB-C connectivity ensures easy battery recharging and firmware updates.

Crafted from a solid block of aluminum, the Brama Remote features a sapphire glass display area for remarkable scratch resistance and clarity.

Powering your passion.

Vinnie Rossi Brama Preamplifier

The Brama Preamplifier boasts a custom switch-mode power supply with linear, Belleson super-regulated outputs, ensuring exceptionally low output noise and impedance across the audio spectrum for pristine performance. Its high-speed operation and low magnetic losses guarantee an ultra-fast transient response, surpassing conventional linear supply designs and delivering superior pace, rhythm, and timing in music reproduction.

The power supply features independent outputs for the positive and negative preamplifier voltage rails, 300B cathode heating, and front panel control circuitry. This design minimizes crosstalk and interference, enhancing overall performance. Regardless of AC mains quality, the power supply maintains superior regulation and stability. Housed in a fully enclosed compartment precision-machined into Brama’s solid aluminum body, it is fully grounded and isolated from the audio circuitry, operating like a highly-responsive, well-tuned engine.

Simplicity – the ultimate sophistication.

Vinnie Rossi Brama Preamplifier

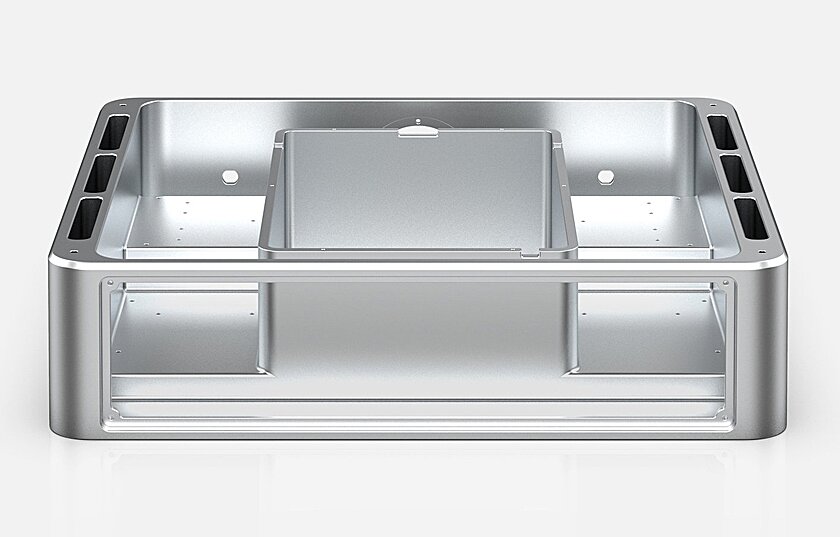

Uncommon even among cost-no-object components, the main body of the Brama Preamplifier is precision-machined from a solid block of aluminum. This construction offers exceptional resonance control, complete shielding against electromagnetic interference (EMI), and ensures superior heat dissipation, thereby guaranteeing the long-term reliability of its internal components.

From an industrial design perspective, the seamless construction enhances the preamplifier’s aesthetic appeal for audiophiles who value sophistication and elegance.

                  Vinnie Rossi Brama Preamplifier

Additional Features
Volume Control: 100-step resistor ladder topology
Input Select: Choose from 5 inputs
Gain: Adjustable (0dB, +6dB, +12dB)
Balance: 12-step adjustment from left to right
Memory Inputs: Save settings for Gain and Balance per input
Home Theater Bypass Mode: Easily switch to this mode

Front Panel

Left Knob: 24-position Swiss rotary encoder with magnetic sensing; push-button for power On/Off

Right Knob: 48-position Swiss rotary encoder with magnetic sensing; push-button for mute and Volume/VU mode select

VU Gauge

Gauge Glass: Made of sapphire crystal

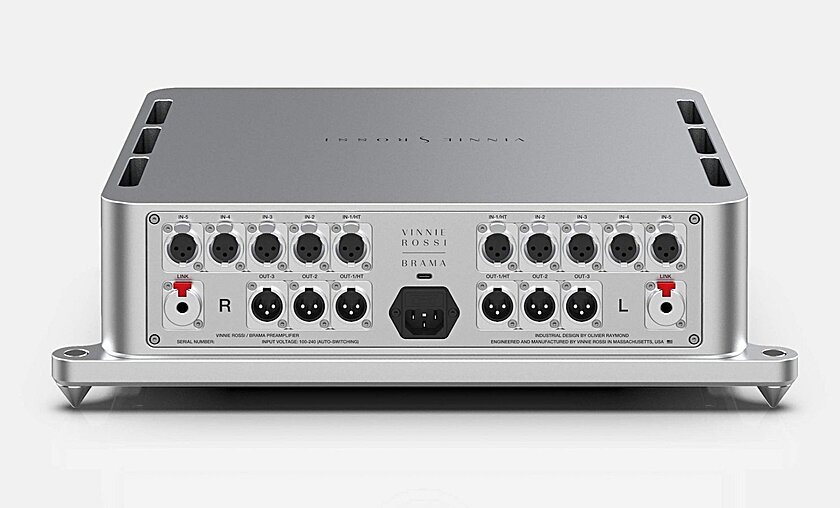

Rear Panel

Line-Level Inputs: 5 sets of XLR inputs (RCA-to-XLR adapters included)


Logo 468x120

Line-Level Outputs: 3 sets of volume-controlled XLR outputs

USB-C Jack: For firmware updates

Brama Link: 1 pair for trigger output or interfacing with Brama Monoblock Power Amplifiers

AC Input Jack: IEC 320-C14 with built-in fuse holder



AC Mains Input: 100-264Vac (50-60Hz)

THD+N: Less than 0.1% (20Hz – 20kHz)

Frequency Response: 5Hz – 100kHz (+/- 0.5dB)

Signal-to-Noise Ratio: Greater than 100dB

Input Impedance: 20k ohm

Gain: Adjustable (0dB, +6dB, +12dB)

Output Voltage: 10Vrms maximum (balanced outputs)

Output Impedance: Less than 100 ohms

Triodes: Western Electric WE300B (matched pair)

IEC Jack Fuse: 4A 250V (5x20mm), Fast Blow, Ceramic Type

Power Consumption (Idle): 45W

Product Weight: 46 lbs. (20.9 kg)

Product Dimensions (including knobs, jacks, feet): 18.7″ x 15″ x 5.5″ (475mm x 381mm x 140mm)

Remote Dimensions: 6″ x 2″ x 0.5″ (150mm x 50mm x 12.5mm)

Shipping Weight: 69 lbs (31.3 kg)

Shipping Carton Dimensions: 25″ x 21″ x 11″ (635mm x 533mm x 279mm)

(Vinnie Rossi reserves the right to change product features and/or specifications without notice to improve reliability, function, design, or otherwise)

Travel Case

The Brama Preamplifier ships in an air-tight hard case with custom foam interior, 4-latches, rubberized handle and automatic air-pressure release valve.
